Guarantee 100% localization of every component of the product.
Highly accurate magnetic sensing technology, singleturn or multiturn encoders
Analog current 4-20mA, 0-20mA or voltage 0-10V, 0-5V outputs
Additional incremental signal TTL or HTL outputs available
Single-turn resolution up to 16 bits, multi-turn up to 14 bits
Superior shock and vibration resistance
Reverse short-circuit and short-circuit protection to minimize the impact of installation errors on the encoder.

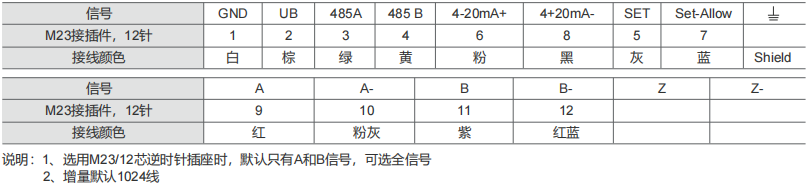

Absolute and incremental signal dual output wiring definition

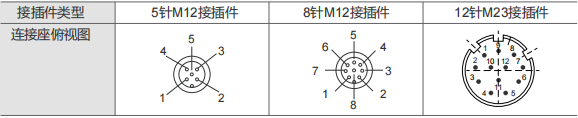

Top view of pin connector block

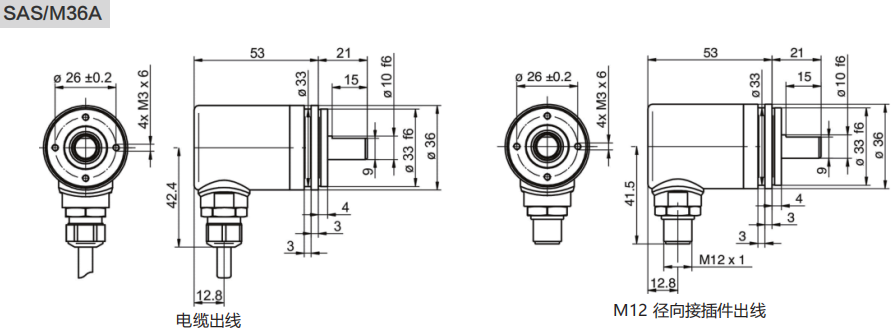

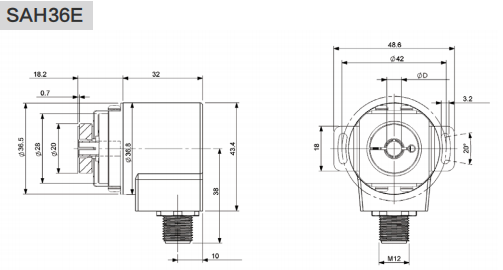

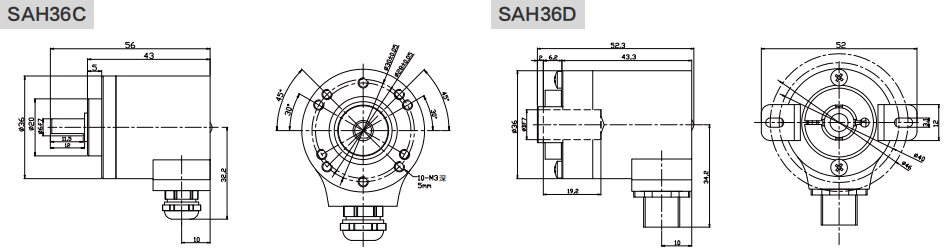

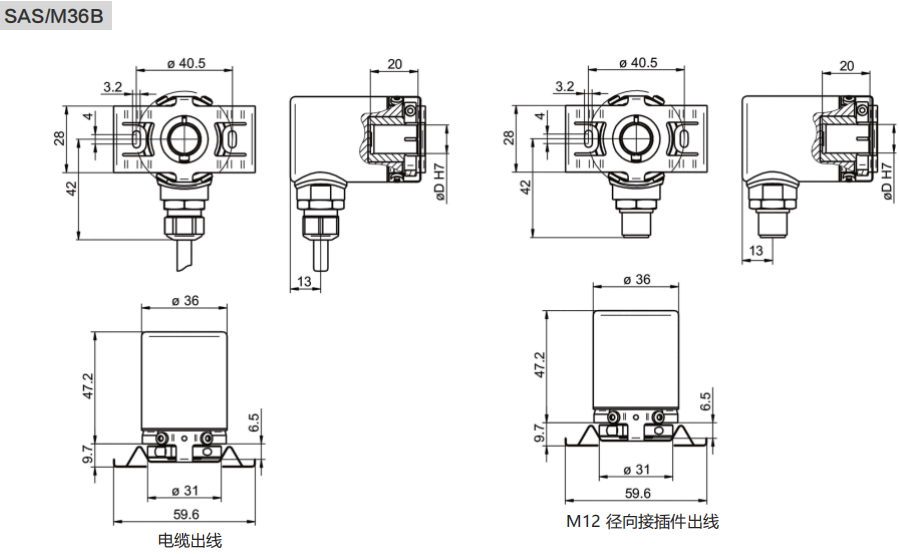

Installation Dimension Drawing

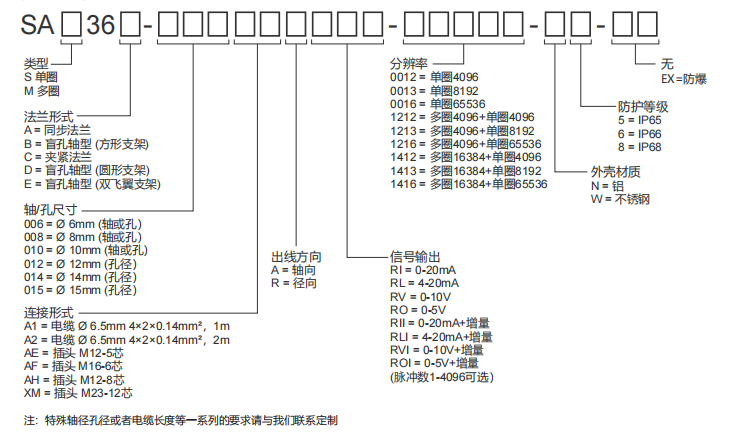

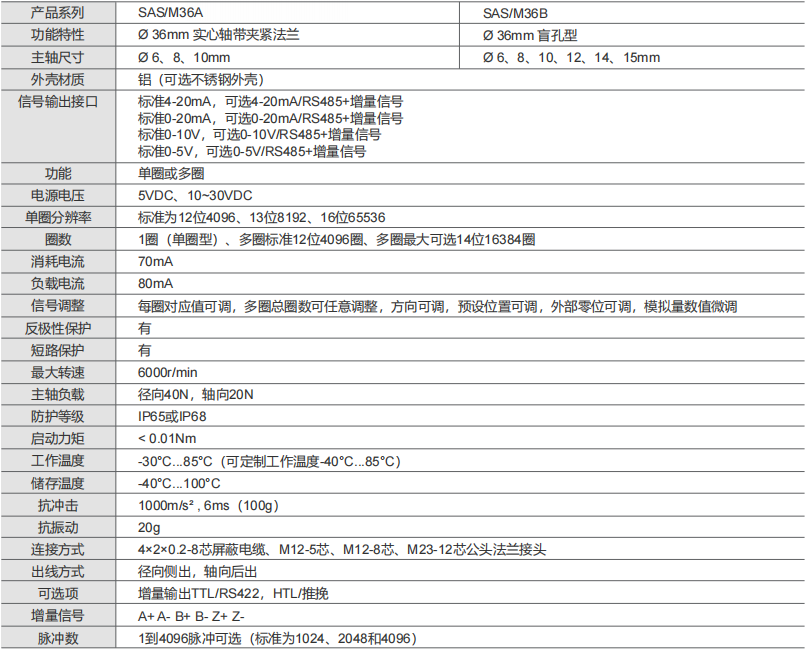

Selection Data Sheet
